Images (formats, Size)

Modified on Mon, 18 Aug at 4:43 PM

On your OKAST platform you are asked to upload several types of images in the different menus.


On your OKAST platform, you can upload multiple image ratios depending on your pages.

If you encounter a problem:


1) Upload only the first image.


2) Wait for it to display and save.


3) Reload the page to display the other thumbnails.


4) Edit one of the thumbnails, save, and reload the page.


We automatically generate three resolutions for each image you upload to OKAST:

- low definition

- SD definition

- HD definition.


We then display the correct size based on the weight of your page (if you already have a lot of images to display in your carousels, for example) and your users' web connection speed.



Some general recommendations:


- Compress your images to less than 2.5 MB for optimal and fast display. The total size of all images must not exceed 15 MB.


- If your photos are not (exactly) the right size, we will automatically crop them slightly to fit.


1. Images for your contents :

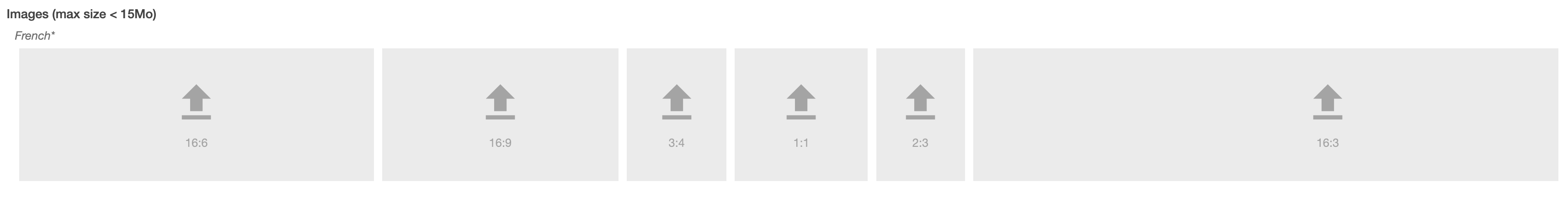

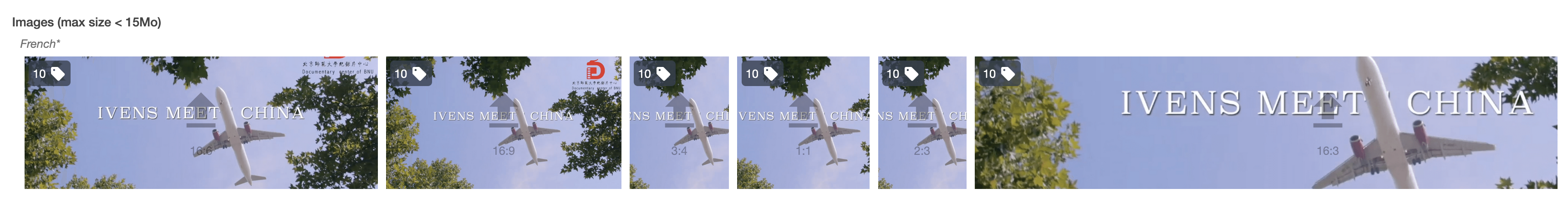

There are 6 ratios available in the PLATFORM > Layout > Content menu:


- 16:6 “banner” format

- 16:9 “thumbnail” format

- 3:4 “poster” format

- 1:1 “square” format (in mobile version, the number of visible elements must be 1 or 4 and more for reasons of phone screen ration)
- 2:3 "landscape"

- 16:3 “banner



Example of a possible layout in poster size. Please note that this size does not support the short description when hovered over, for reasons of display to your users.


2. Images on the home page:

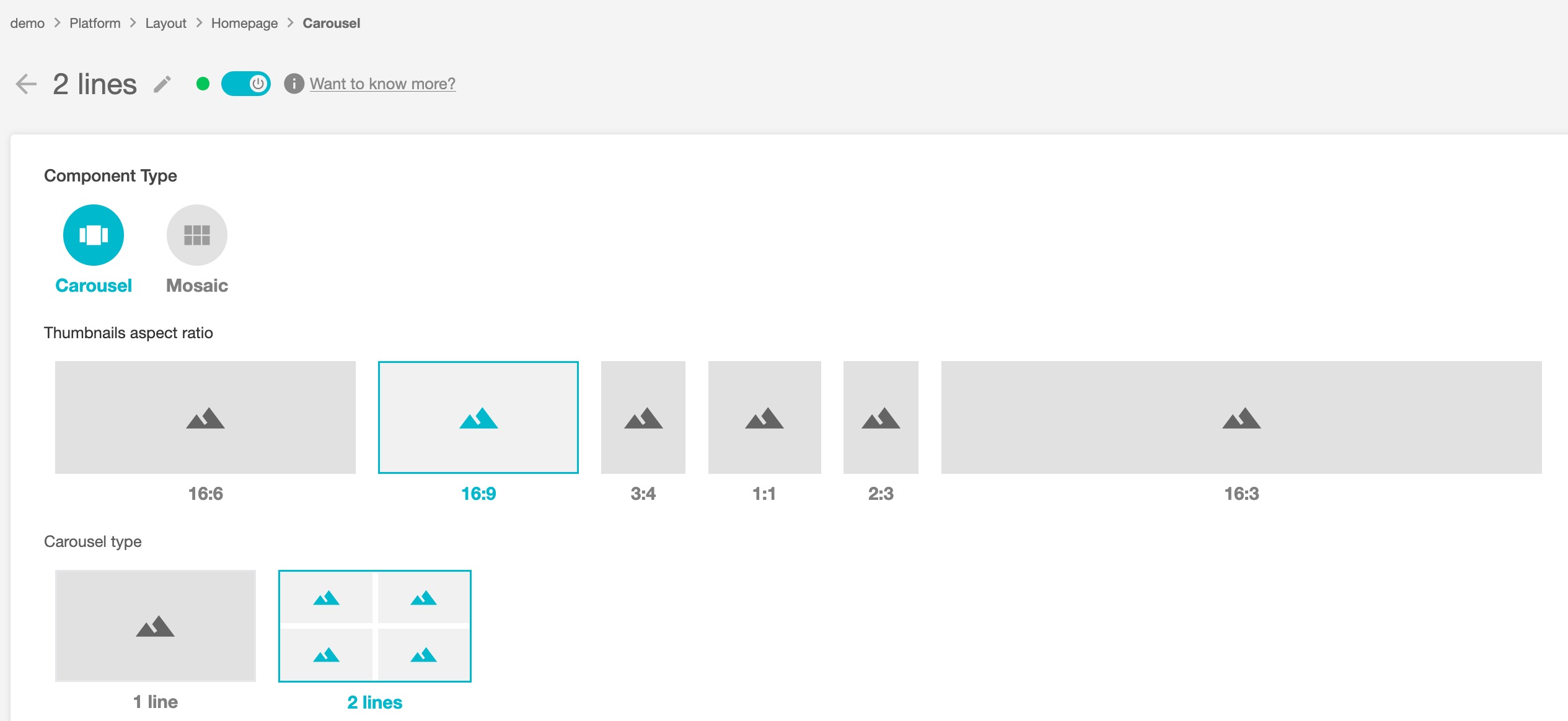

On the Home Page, you can choose the dimensions you want to display in your carousels in the PLATFORM > Layout > Home menu, using 1 or 2 lines.

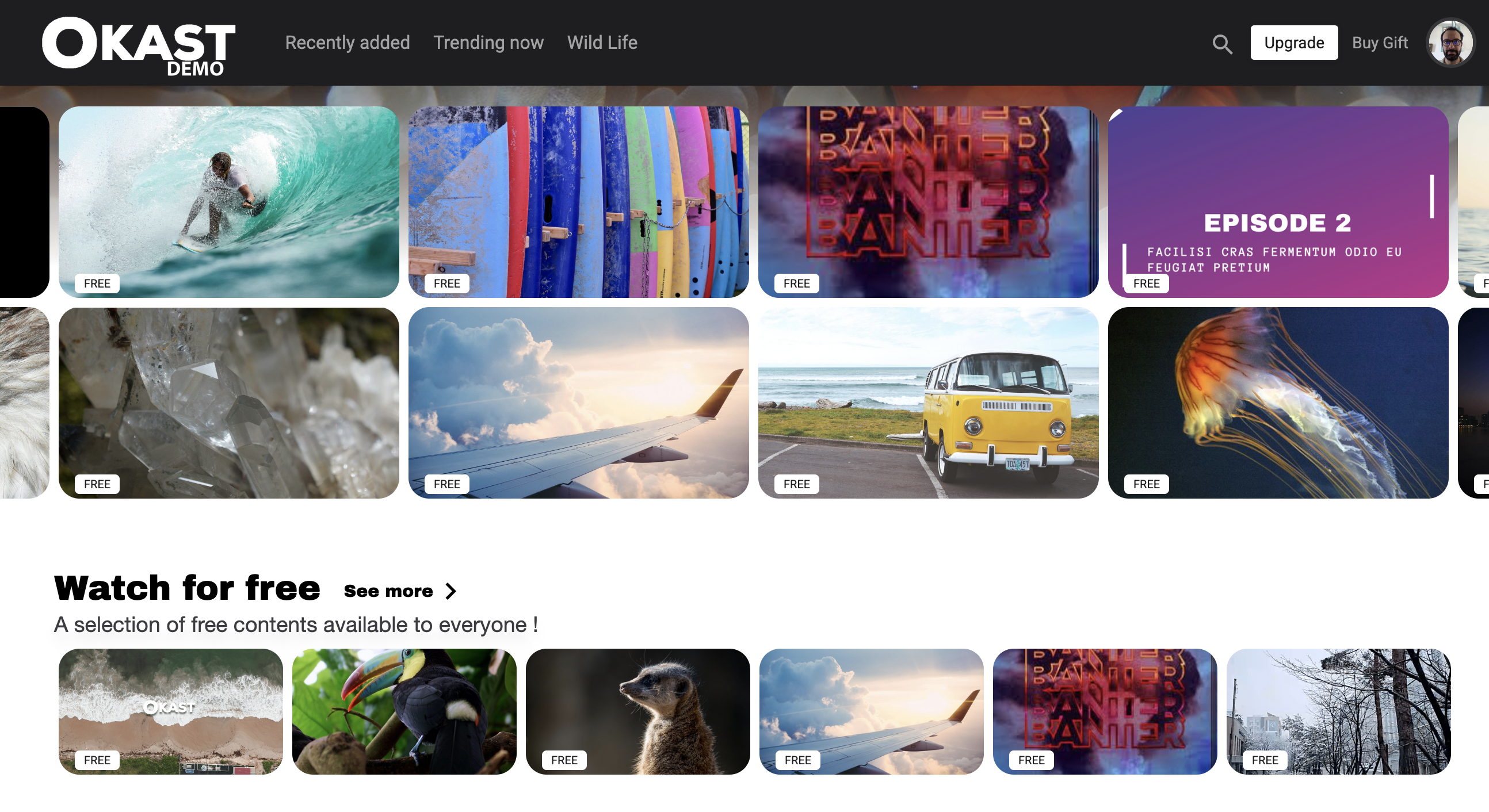

Here is an example of a possible layout with a 16:9 thumbnail on 2 lines followed by 1 line.




3. Images from your Smartlists


There are 6 ratios available in the PLATFORM > Layout > Smartlist menu:


- 16:6 “banner” format

- 16:9 “thumbnail” format

- 3:4 “poster” format

- 1:1 “square” format (in mobile version, the number of visible elements must be 1 or 4 and more for reasons of phone screen ration)
- 2:3 "landscape"

- 16:3 “banner

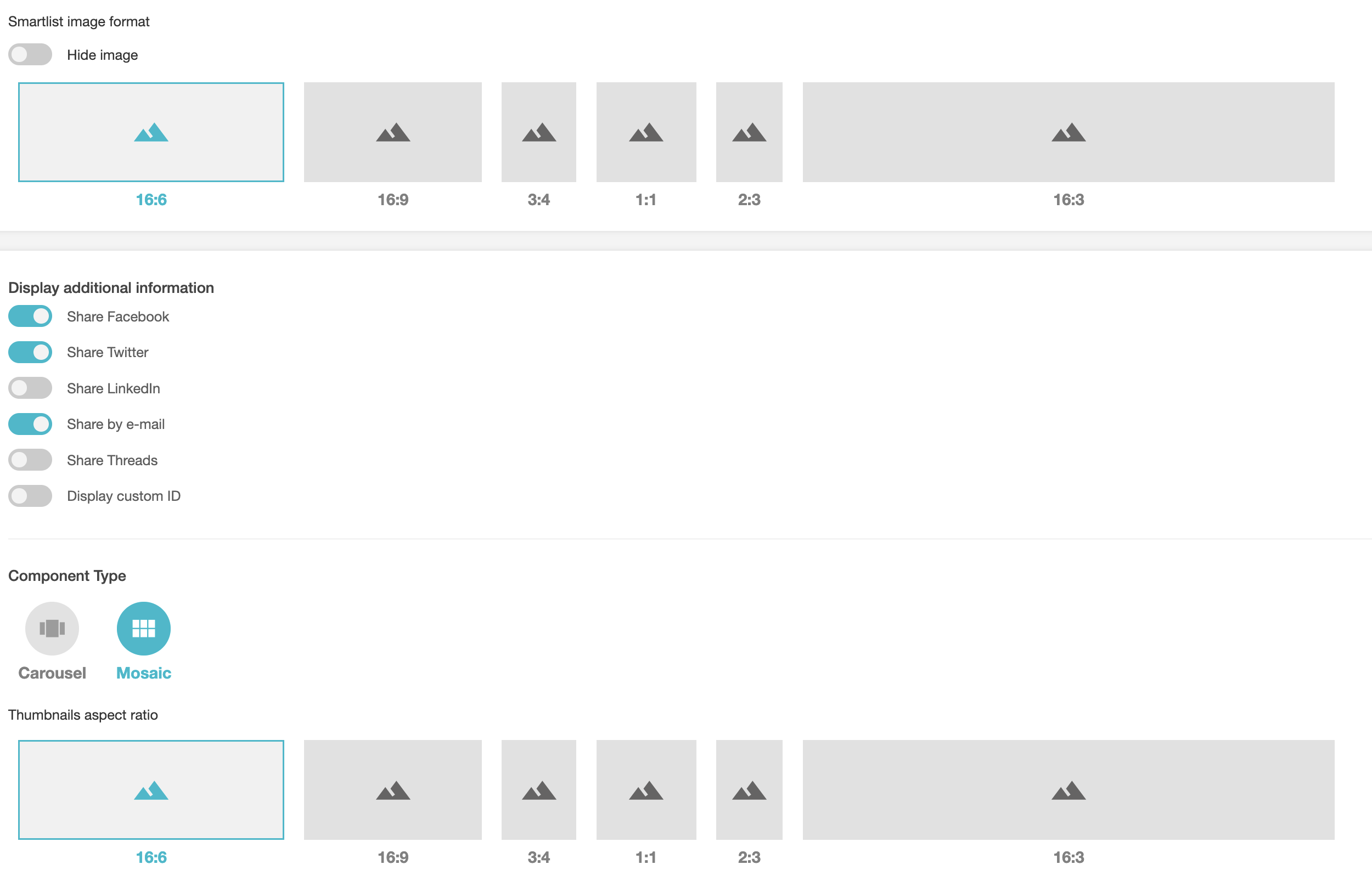

On the Smartlist page, you can choose the dimension you want to display in the carousels for your Smartlists. You can also hide the Smartlist image.

On the Smartlist page we only display a 16/6 banner on the top of the page:




4. Images for your offers

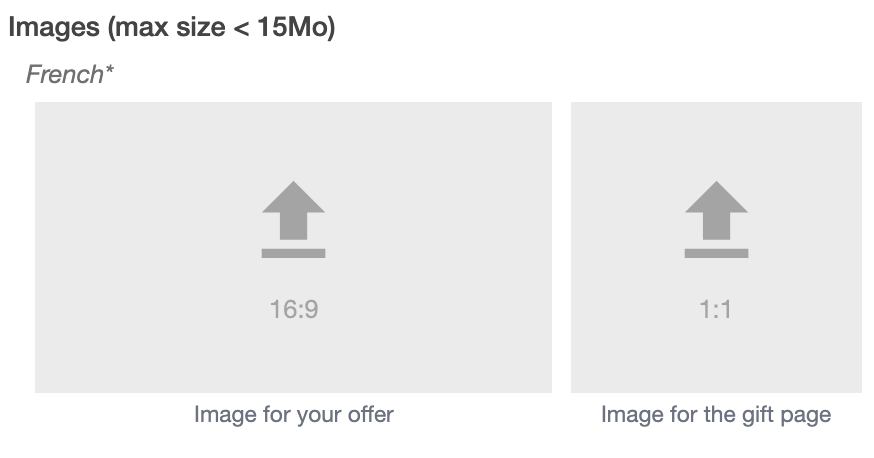

You can upload two dimensions: 16:9 for the offer illustration and 1:1 for the gift illustration.




Here is an example with three offers available on the offer page.
